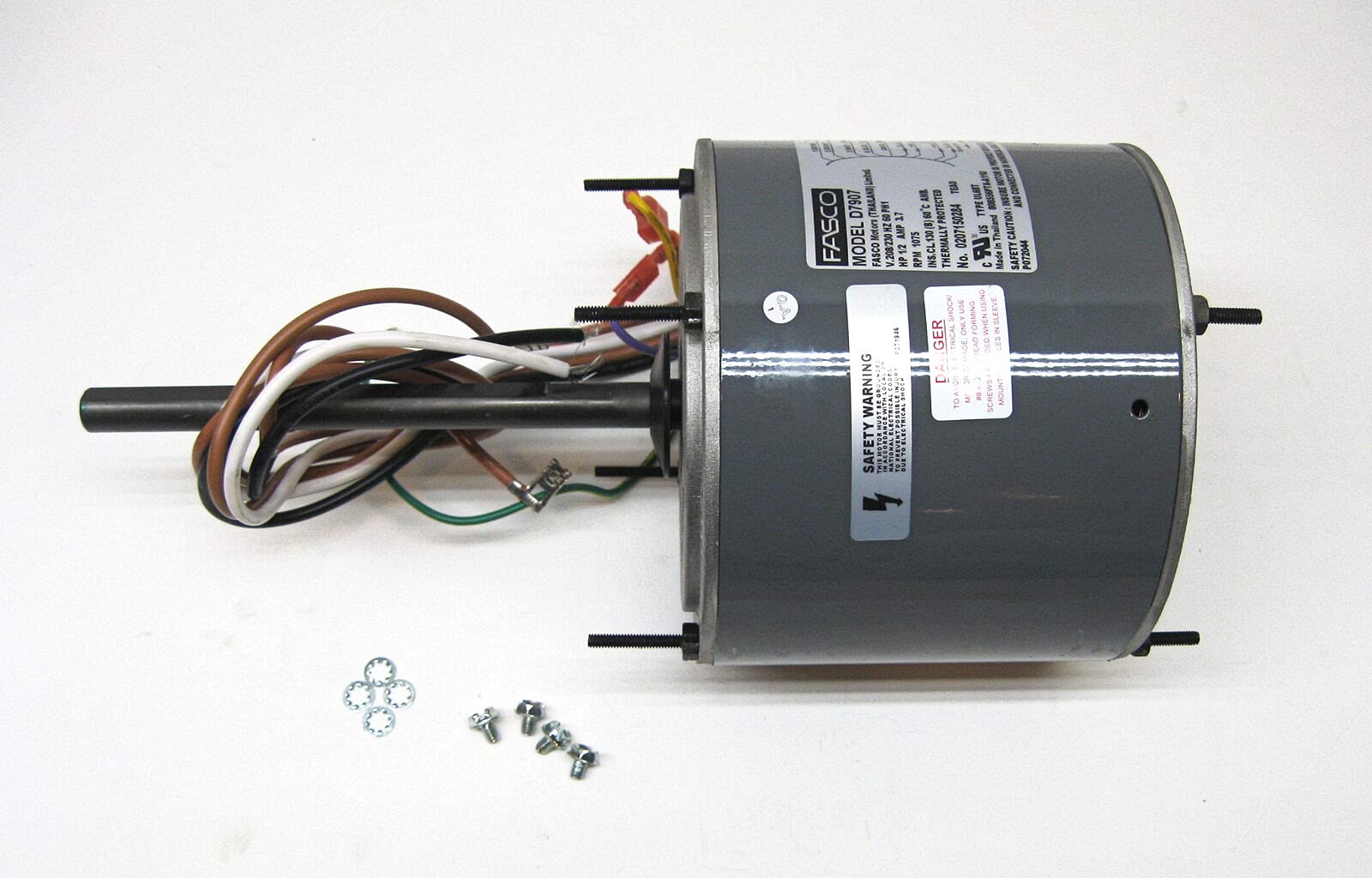

AC Air Conditioner Condenser Fan Motor 1/2 HP 1075 RPM 230 V for D7907 Fan motor: part number D7907
Specification: 1/2 horsepower 208-230V single phase 3.7 Maximum Ampere 1075 rpm Full angle installation 5-5/8" diameter 4-3/4" height 1/2" x 6" shaft (if needed, you can cut with a hacksaw)
Use abdominal straps or 4 studs, the studs are 3-3/4" from center to center 4 drilled and threaded holes on the motor housing for Rheem installation (including screws)
Sleeve bearing Single speed Electrically reversible (by flipping 2 wires) Thermal Protection Wiring diagram printed on the motor
Capacitor startup requires a 10 mfd 370 vac capacitor (capacitor not included) Wiring diagram printed on the motor. The motor is totally enclosed and non-ventilated (TENV).
