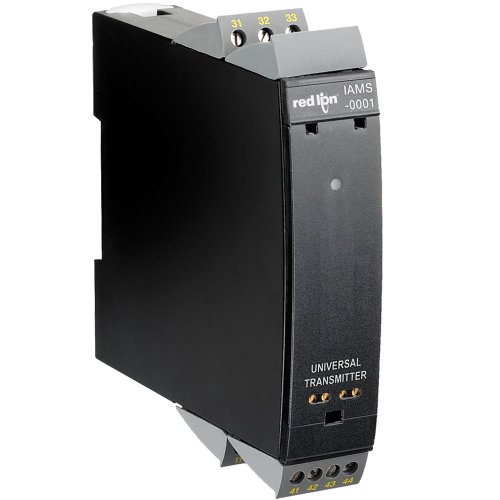

Red Lion IAMS 3-Way Isolator Intelligent Universal Signal Conditioner with Analog Output, 19.2-300 VDC - Industrial Automation & Process Control Solution for PLCs, Sensors & Monitoring Systems

The analog model (IAMS0001) provides a retransmitted analog signal. To program the unit, add the detachable module (PGMMOD00), which easily connects to the front of the IAMS. For applications requiring more than one IAMS, only one module is needed. The PGMM0D00 can store programming from one unit and load it to another reducing set-up time. When the programming module is not being used to enter or adjust programming, it can indicate input parameters. The display can be configured in seven different languages. Specifications range: -20 degree C to +60 degree C. Common specifications: Supply voltage, universal 21.6 53 VAC, or 19. - 300 VDC. Max. consumption = 2.5 W. Fuse 400 mA SB / 250 VAC. Isolation voltage, test / operation 2.3 kVAC / 250 VAC. Communications interface Programming front PGMMOD00. Signal / noise ratio Min. 60 dB (0...100 kHz). Response time (0-90 percent , 100-10 percent ): Temperature input = 1 s mA / V input = 400 ms Calibration temperature 20-28 degree C. Accuracy, the greater of the general and basic values. CE, UL and RoHS approvals.

Input for RTD, TC, Ohm, potentiometer, mA and V

2-wire supply greater than 16 V

FM-approved for installation in Div. 2

Output for current, voltage and 2 relays

Universal AC or DC supply
