LOVE SCL4380 Signal Conditioner 0-10VDC Input 11-36VDC/24VAC Output - Industrial Automation & Process Control Device for Sensors & PLC Systems

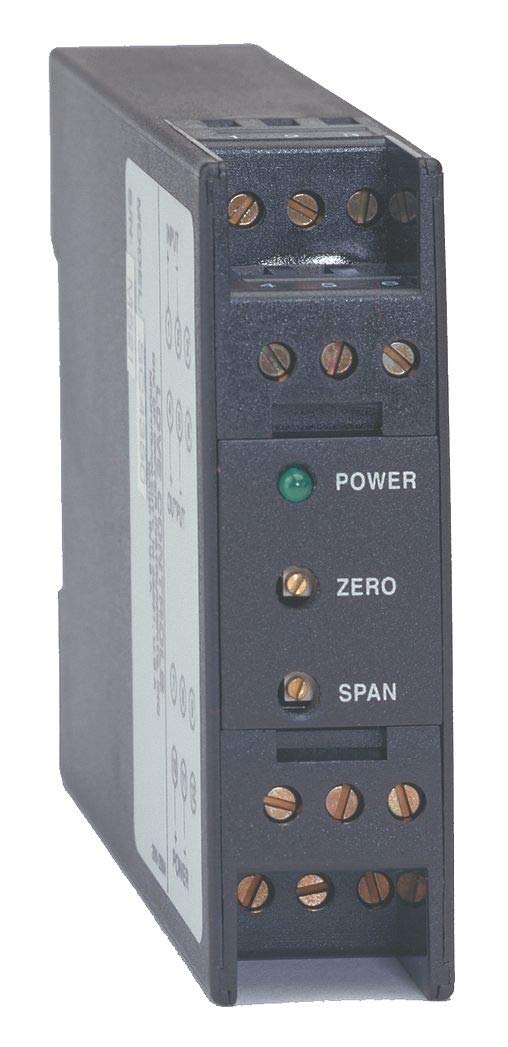

Linearized and isolated RTD and Thermocouple transmitters are part of the Dwyer Series SC4000 Iso Verter II Signal Conditioning Modules. These modules completely isolate the input from the output and from the ground. Compatible with industry standard 35 mm DIN Rail mount transmitters and isolators, these modules are easily applied in new or existing installations. The SC4380 Process Signal Converter/Isolator accepts virtually all standard process signals as input, and isolates and retransmits the signal in either the same units or virtually any other standard process signal. The SC4380 can be field programmed for reverse or direct action and can receive and transmit single sided or bipolar* signals. Low voltage units (SCL) are also available.

Power Supply: SC: 85 to 265 VDC/VAC 50 to 400 Hz; SCL: 12 to 24 VDC/VAC 50 to 400 Hz.

Output Loads: Current: 600 Ohms maximum Voltage: 500 Ohms minimum (20 mA maximum).

Input Characteristics: SC4380: Voltage: 1 M Ohm impedance, Current: 10 Ohms; SC4151: RTD search current < 500 µA; SC4130: 3 M Ohm impedance.

Drift: ±0.02%/°C typical, ±0.05%/°C maximum.

Linearity: 0.1% of full scale.
